Machine Characteristics

1.Automatic crimping machine realizes the functions of continuous automatic processing of wire stripping,cutting,tying,double-end threading and single-end threading.

2.Suitable for coaxial lines, sheathed wires, electrical wires, PVC wires,  new energy cables, fiberglass wires, BV hard wires, BVR soft wires, independent twisted wires, flat sheathed wires, high-temperature wires, multi-core cables, electrical control cabinets, battery box wires, new energy wires.
3.The machine adopts a modular design,and the wire feeding device,end punching device,knife holder device,bolt threading device,rear stripping device,and wire take-up device can be disassembled independently and quickly,which is convenient and fast for maintenance.
4.The stripping length,cutting length,bolt threading speed and terminal crimping speed of the wire can be adjusted on the touch screen.
5.The machine is equipped with optical fiber induction detection to detect the existence of wires and terminal crimping,so as to improve the yield of products.

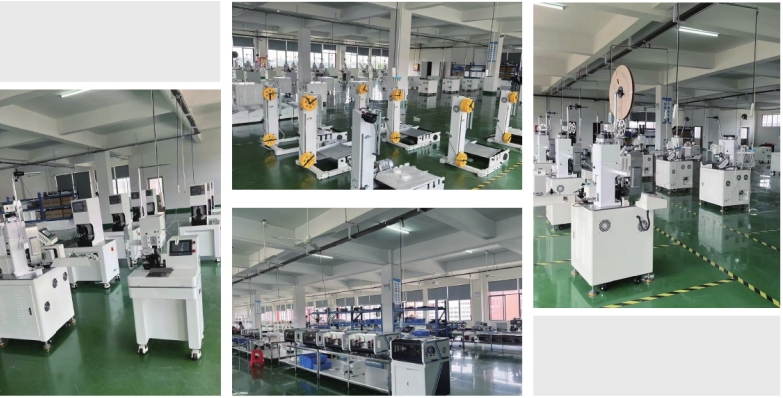

The following shows our different wire harness processing equipment. If you want to learn more about equipment information, please email or leave a message to us, and our company will provide you with a complete set of equipment information. Thank you!



Our company has over 20 years of experience in researching wire harness processing equipment, with multiple models of automated and semi-automatic wire harness processing equipment, including cutting machines, wire stripping machines, terminal crimping machines, pipe cutting machines, wire laying machines, and other equipment.

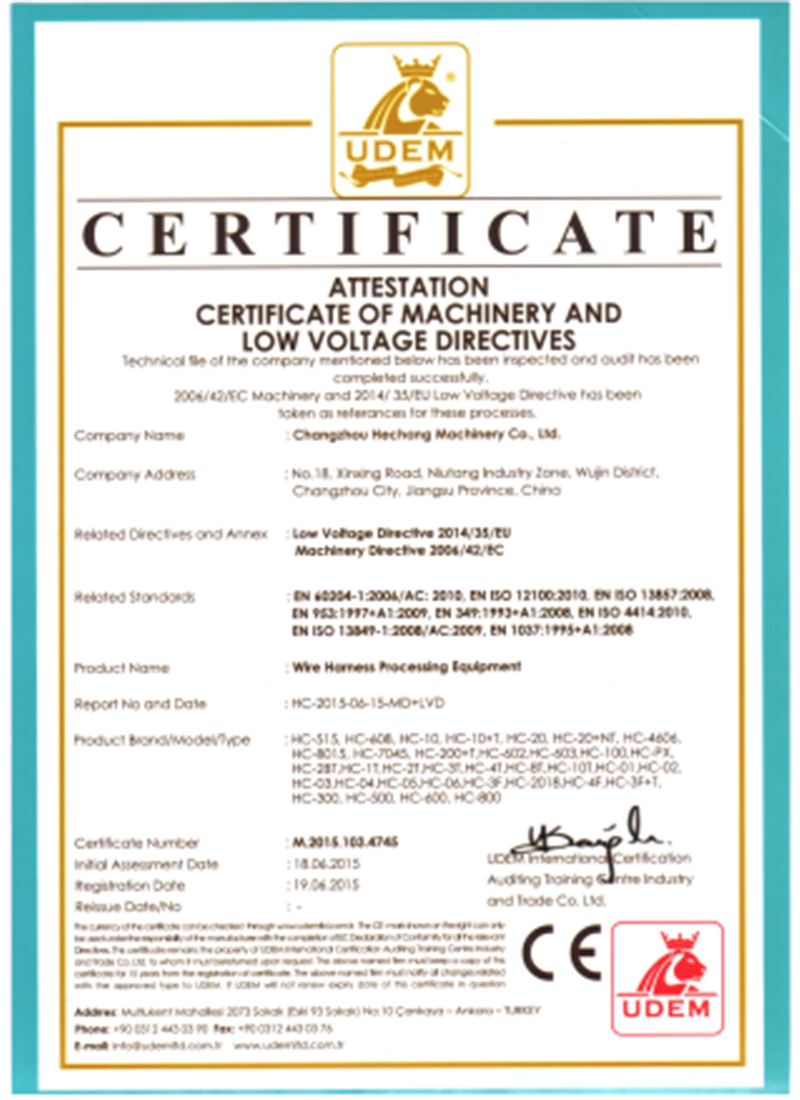

We have ISO9001 certificate,ce certificate,and 26 practicaland invention certificates.



Machine Specification

Model

Automatic insertion and crimping machine

Power

220V/600W

Function

Cutting wire,Stripping wire,One end terminal crimping,Double end crimping

Production

1500pcs/h(200mm);1400pcsh(1000mm);Single wearing double crimping 1600pcs/h(200mm)

Wire types

coaxial lines, sheathed wires, electrical wires, PVC wires,  new energy cables, fiberglass wires, BV hard wires, BVR soft wires, independent twisted wires, flat sheathed wires, high-temperature wires, multi-core cables, electrical control cabinets, battery box wires, new energy wires.

Wire sizes

0.25-240mm²

Wire length

50mm-99999.9mm(Minimum remaining 60mm)

Cutting precision

Tolerance:Below 1mm+cutting length*0.2%

Air pressure

0.5-0.65MPa(Must be clean and dryair)

Dimensions/Weight

L1300*W1050*H1550mm/580kg

Sample


▶ FAQ

  • Q: What are the wearing parts? A: Blade and belt. More spare parts info, please contact us.

  • Q: Operation and user manual? A: English and Chinese optional.

  • Q: How long is the warranty period?A: 1year, all belts and blades without of the warranty.

  • Q: What after sales service do you provide?A: Technicians online support, video technical support within 24 hours.
    If you need local service please check with Hechang Machinery. Generally require additional charges.
